Protolab Circuit & Test PC Simulator Review

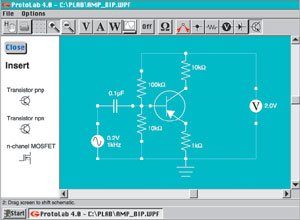

Easy to use PC interface. Easily create AC & DC circuits moments after installation with ProtoLab?s easy "click and drag? component placement and on-line help. You choose from a complete list of active and passive components, all of which are included. Once built, you can test and analyze your circuit with five virtual instruments also included. ProtoLab 4.0 is designed to work as a simulated prototyping lab. Insert components on a grid, similar to a breadboard, then test the circuit using the appropriate test instrument from the tool bar. ProtoLab?s prototyping grid area is extensive and can handle a vast array of active and passive components. Protolab?s predesigned circuit library includes: MOSFET & transistor amplifiers, bridges, sinewave oscillators, squarewave oscillators, phase shift oscillators, current mirrors, integrators, differentiators, transistor & MOSFET monostables, LC oscillators, tuned collector amplifiers, LC tuned circuits, power supplies, and voltage stabilizers. Components include wires, junctions, grounds, resistors, capacitors, inductors, DC voltage sources, AC voltage sources, DC current sources, AC current sources, diodes, zener diodes, transistors, and MOSFETs. Including: Voltmeter, ammeter, wattmeter, oscilloscope, and ohmmeter. Requires PC (Not Mac!). Read more...
Free Shipping Protolab Circuit & Test PC Simulator @ Amazon.com
